Deliverability

Implementing DMARC: A step-by-step guide

DMARC is not just a record, it’s a process of organizing your email program to keep spoofers from impersonating you. Follow these steps to get set up:

Email spoofing is rampant across the internet. Fraudulent emails come in the form of scams, ransomware, and even stock-market manipulation. We see companies lose millions of dollars every year to malicious hackers – not even charities are safe. Even if you’re a domain owner and set up strict email security, your “from” address can still be spoofed if you miss DMARC.

But what is DMARC and why is it so important? In this post, we’ll share all you need to know about this email authentication and the steps you need to take to implement it.

What is DMARC?

Take a deep breath – this acronym is a long one.

Domain-based Message Authentication, Reporting, and Conformance (DMARC) is an authentication method designed to stop bad actors from impersonating you.

Developed in 2012, DMARC has become an industry-standard practice and is your first line of defense against malicious emails on your sender program. Not sure if you already have DMARC set up? Use this tool to perform a quick DMARC check

Why is DMARC so important?

While email is as old as the internet itself, email authentication is an unfolding process. Before DMARC, inbox providers like Google relied on strict filters and user feedback to identify spammers. So strict, in fact, it could block out legitimate senders.

Using DMARC, a sender can analyze feedback loop reports to develop a strict authentication protocol that tells receiving mail servers which IPs on your domain are yours. A DMARC policy will instruct ISPs to reject emails from fraudulent IPs that are attempting to use your domain.

That all sounds great, but why bother if your emails are currently getting through to the inbox just fine? The answer is security90% of network attacks are carried out through email infrastructure and are becoming increasingly sophisticated. Your ISP reputation, deliverability rates, and brand reputation are all severely damaged in the case of a phishing attack.

Sounds scary, right? But before you rush to set up DMARC, let’s first understand how it works.

How does DMARC work?

Simply put, DMARC is a line of code that goes into your DNS TXT record. Yet DMARC is so much more than code – it’s a process that takes place before, during, and after implementation to ensure your email system continues to run smoothly. Let’s run through three key components of DMARC to understand this authentication standard better.

Before DMARC: Utilizing SPF and DKIM

To understand DMARC, we first need to understand its predecessors, Sender Policy Framework (SPF) and DomainKeys Identified Mail (DKIM).

SPF is an authentication method for senders to publish the IPs of trusted SMTP servers that are allowed to send from a domain. The receiving server then cross-checks this record to validate the email and send it to the inbox. DKIM authentication, on the other hand, is a signature that goes into your public DNS records, verified with a private key in your email header.

Why are these so important to DMARC? Because DMARC passes or fails a message based on the alignment of SPF and DKIM.

During DMARC: Breaking down the record

A DMARC record is compiled of relatively straightforward tags and values. Only two fields are required, and the rest are optional. In this post, we will cover the minimum requirements. However, Google has a list with all the advanced tags.

Here is an example of a simple DMARC record:

v=DMARC1; p=reject; rua=mailto:postmaster@mailgun.com;

The first tag v= is easy. It must always be DMARC1. There are no other versions at the moment, so always use 1

The second tag p= is an instruction to the recipient's email server for emails that do not pass authentication. Here are your options:

  • NoneLog the entry but take no action.

  • QuarantineMark as spam.

  • RejectBounce the email message.

If you are using BIMI, the p= tag must be set to quarantine or reject as BIMI does not support none

The third tag is rua= or Report Email Address. This is the dedicated mailbox where your DMARC reports are sent.

If you don’t want to compile the record yourself, Dmarcian has a free DMARC record generator wizard.

After DMARC: Reviewing DMARC reports

Finally, we have the reporting stage of DMARC. Once DMARC has been safely implemented, reports will begin flying into your assigned inbox. These reports will tell you:

  • Which servers or third parties are sending mail from your domain and if they pass or fail.

  • How each receiving mail server reacts to unauthenticated messages.

  • The total DMARC pass rate percentage.

An optional reporting tag ruf= tells ISPs where to return fail or forensic reports. While this tag is not supported by all mailbox providers for data reasons (Gmail, we’re looking at you…), it can give you more insights into the email content that failed compared to a standard aggregate report.

The results of these reports will help you pivot your DMARC policy. For example, if most messages are passing through the email receiver’s mail servers, you will need a stricter policy to catch spoofers. Each day, you will need to analyze your reports and troubleshoot any issues that you come across, like legitimate emails being sent to the spam folder. Now that we have a better understanding of DMARC, let’s go over a checklist of steps to implement it.

How to set up DMARC

Wondering how to configure DMARC? Here’s a detailed guide to help you implement it.

1. Prepare your domain before you set up DMARC

We know you’re eager to roll out your new DMARC policy, but there is some preparation you need to undertake first.

Set up SPF and DKIM for your domain

As mentioned above, you must have SPF and DKIM activated in order to run DMARC.

For SPF, this requires adding a DNS TXT record found within your ESP settings to your DNS provider. For DKIM signatures, the process is similar – copy the DKIM record from your ESP and paste it in your TXT DNS file in the settings of your DNS provider.

Set up a group or mailbox for reports

XML reports that track emails to every location and ISP are going to pile up quickly. So you’re going to need a mailbox that’s independent of other functioning addresses. For small companies, this may be a few and for a large organization, a few thousand. Consider using a third-party service to manage and decode these reports.

Audit your sending domains

Even a chess prodigy would struggle to remember a list of IP addresses. So when your DMARC reports begin to roll in, you’re going to want a list of your sending domains handy so that you can identify the fake from the familiar.

A domain management function is a process of auditing your domains. Doing this step first will save you a lot of time and headaches, especially for larger organizations that require cross-collaboration between teams. Luckily, our friends over at Dmarcian have created a handy video about DMARC project management.

2. Choose a policy

Before DMARC, it was up to mailbox providers to decide your email’s fate. Now you can take the steering wheel by defining your authentication policy. Aka, what action should Microsoft take when a message from your domain name does not match the DMARC record. Imagine your policy is a traffic light system with the aim to move your policy from green (none) to orange (quarantine) to finally red (reject).

None

The p=none tag makes no changes to your existing arrangement – the inbox provider will pass on the message as normal to the recipient. This is a good place to start, as it allows you to monitor the initial DMARC reports in safe mode.

Remember – BIMI doesn't support DMARC policies with the p=none option set to none.

Quarantine

We should all know what a quarantine policy is by this point. For DMARC, this means sending unqualified mail to the spam folder until you are 100% sure where these emails are originating.

Reject

p=reject is the end goal of DMARC. While quarantining is a good start, you don’t want spoofed emails in your customer’s spam folder forever. With that said, choosing this policy too early may result in legitimate emails bouncing. So only activate the reject policy once you have gone through your reports (see step five) with a fine toothpick.

Volume

To control the flow of your authentication rollout, consider applying your policy to just a small percentage of your messages to begin with using this tag: pct=5

The number five represents 5% of the total number of messages sent from your domain. Consider your time, resources, and risk appetite to determine how you want to set this value. Starting small and slowly increasing this value on a sliding scale is the safest approach. The default authentication volume will be 100% if you do not add this tag.

3. Publish your TXT record

Now you’ve defined your DMARC policy, it’s time to push the button.

  1. Go to your domain host’s DNS settings in the management console.

  2. Under the DNS hostname, enter the record name: _dmarc.yourdomain.com

  3. Under the DNS record value, enter your DMARC record (see “breaking down the record” above).

  4. Save the changes.

4. Analyze your reports

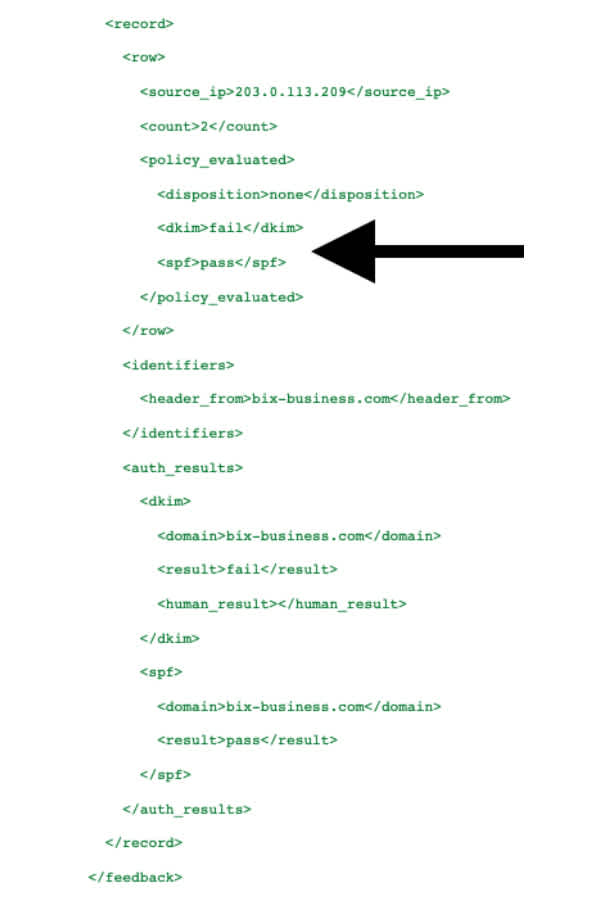

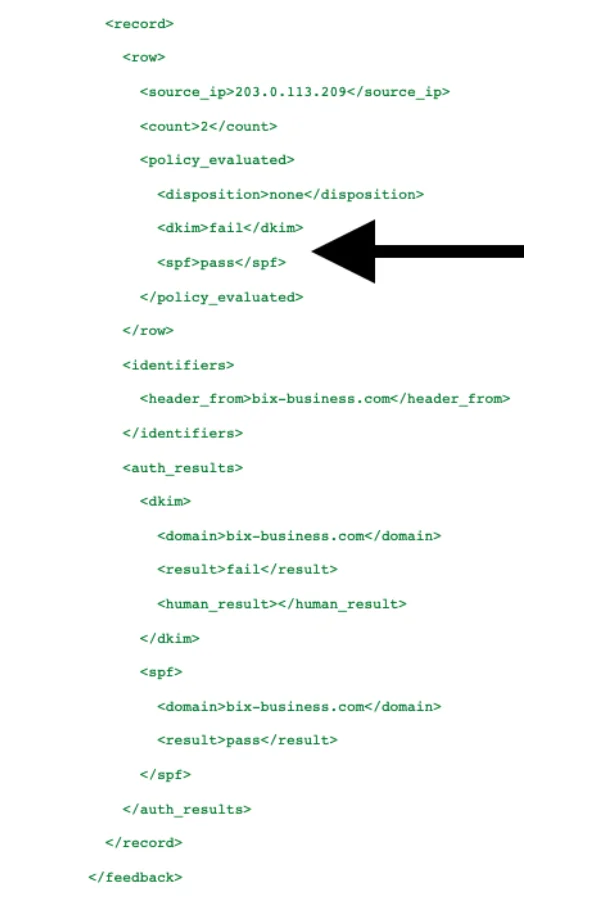

You now have a DMARC record in place and reports have started landing in your mailbox. This data tells you which messages are passing or failing SPF and DKIM authentication. A raw XML DMARC report looks like this:

Note: this record is paraphrased.

Extensible Markup Language (XML) files like this are really designed for machine-reading and can be difficult and time-consuming for humans to read. There are a few methods for adding clarity to these reports:

We’re not robots – we like our reports in tabular format.

We were lost, but now we can see. Hopefully we recognize the IP addresses in the left column as our own. However, it’s unlikely you will remember all the IPs from your third-party apps. There is a three-step process to dealing with these email streams:

  • Assess: Audit your sender IPs and cross-match with the IPs on your reports.

  • Remediate: Add DMARC records to all verified sending sources.

  • Maintain: Ensure the rollout is successful – if it’s not, then begin troubleshooting.

5. Roll out your strategy slowly

The DMARC policy (p=) you have chosen should evolve gradually like a traffic light from p=none to p=quarantine to finally p=rejectThis gives you time to collect data and methodically analyze your daily reports. A safe rollout would look like this:

v=DMARC1; p=none; pct=100; rua=mailto:postmaster@mailgun.com;

Starting with this record, messages are delivered normally and reports are issued from the ISP, letting you identify safe senders on your domain. Six weeks should be enough time to collect data before moving on to the next stage:

v=DMARC1; p=quarantine; pct=5; rua=mailto:postmaster@mailgun.com;

Slide the pct= up slowly as you gather information until you reach 100%. When you are happy with the quarantining messages, move on to the next stage:

v=DMARC1; p=reject; pct=5; rua=mailto:postmaster@mailgun.com;

Slide the pct= up slowly and ensure all legitimate mail is making it to the inbox until you hit 100%. Congratulations, you have safely and successfully implemented DMARC!

Learn more about DMARC from experts Ash Morin from Dmarcian and Kate Nowrouzi, VP of Deliverability at Mailgun, on our podcast – Email’s Not Dead.

Use DMARC with Mailgun

Mailgun leads the charge in email authentication by requiring DKIM and SPF records by default before you can begin sending. Therefore, if you are already using Mailgun, you are just one step away from completing the authentication puzzle with DMARC. This process can also improve other aspects of your email program, like identifying safe IPs with the domain management function.

But the story doesn’t end here – an ISP is still entitled to send your messages to spam if you fail to follow email sending best practices. So why stop there when you’re on a roll? Take a look through these email deliverability best practices to keep your emails away from the spam folder and join our newsletter to get these tips in your inbox every week!
